LINIAN FIRECLIP™, 6-8mm, Double, 1LCB682

• Cable type: Double (two cables)
• Size: For cables with an overall diameter between 6-8mm
• Equivalent cleat size: 4(x2) (CC4x2)
• Recommended spacing: 300mm
• Hole diameter: 6mm*
• Hole depth: 30mm
• Supports a max tensile load of 24kg

Equip yourself with an extraordinary upgrade in cable clip design that delivers major benefits in efficiency, safety and value for money. The LINIAN FireClip™ is a single-component, 18th Edition-compliant, fire-rated fixing. Perfected through years of development, this exceptional innovation looks simple – and it is.

To install, drill a hole, slide the clip over the cable or conduit, and push it in! No plugs, screws, washers, cleats or nail-in clips are needed.

Expertly designed to save time, money and lives, this remarkable evolution of a vital building component can help you make every job faster, safer, simpler and tidier!

Suitable for:

• Round cables and PVC Trunking
• Anchor fixings for wire etc.

Features:

• 18th Edition Compliant
• Corrosion Resistant & UV Stable
• Fire-resistant >1200°C
• BSEN 50200 120 minutes fire time
• DIN 4102-12 DIN 90 minutes fire time
• CE & CA Certified
• Single-component design
• No plugs, screws or washers needed
• Made in Britain
• NOW IN SUSTAINABLE PACKAGING

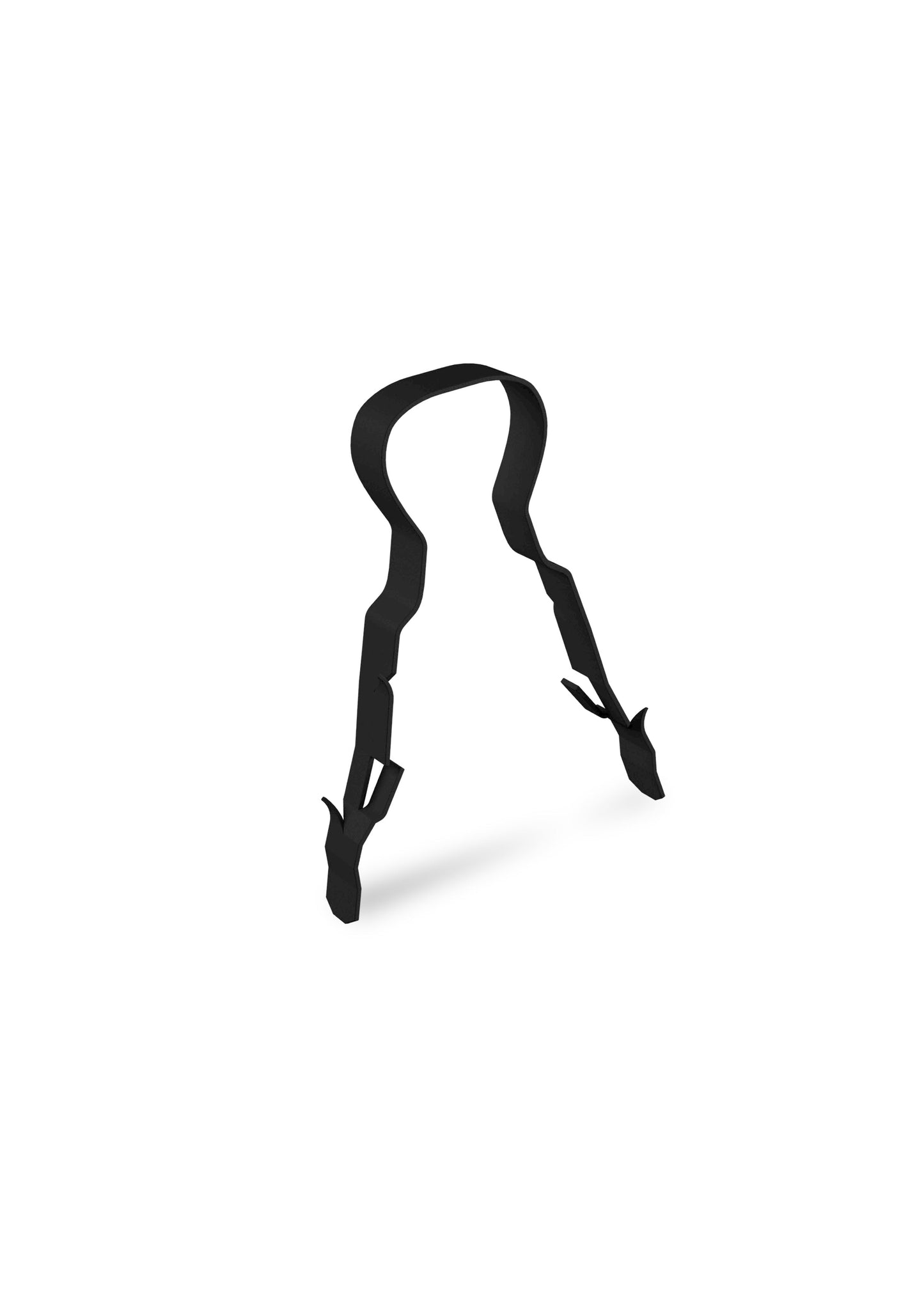

LINIAN FireClips™ are available in a range of colours including Red, Black, and White (and more) to suit single or double cables with diameters from 4mm - 14mm.

*+/- 0.5mm. Varies for best fixing according to the substrate.

See datasheet for further details.

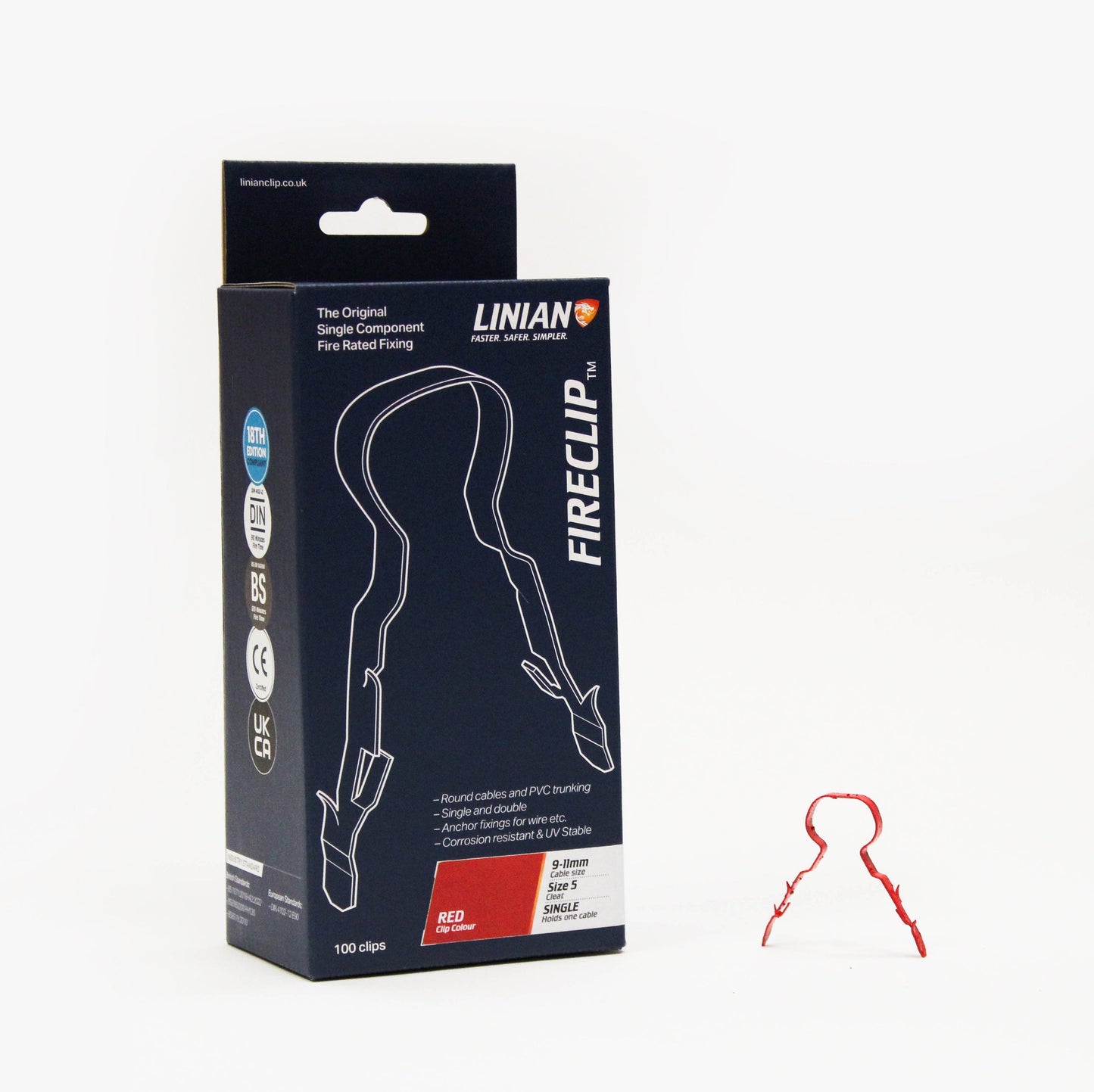

Sold in packs of 100.
